Description

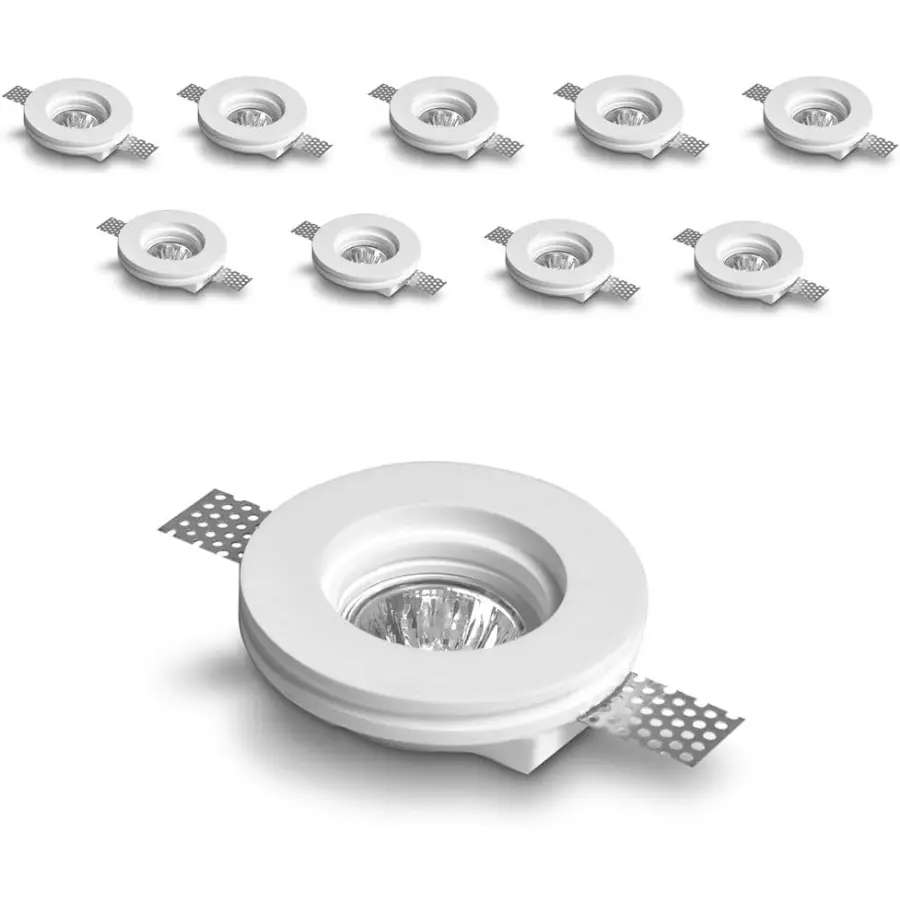

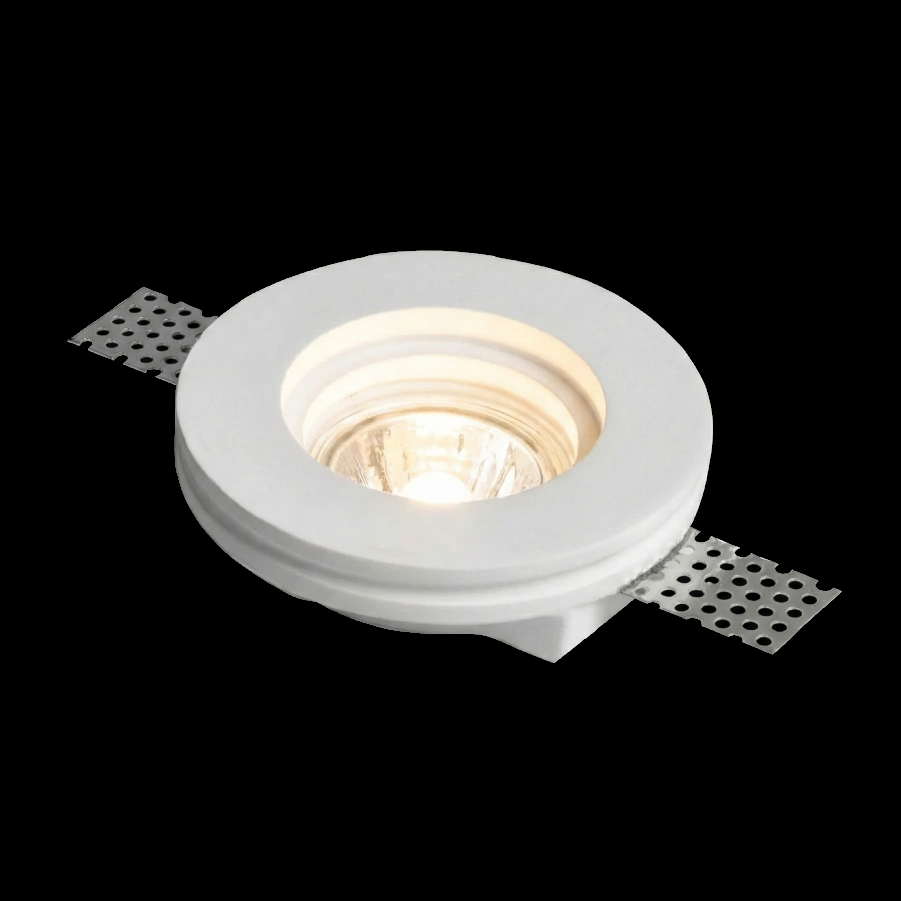

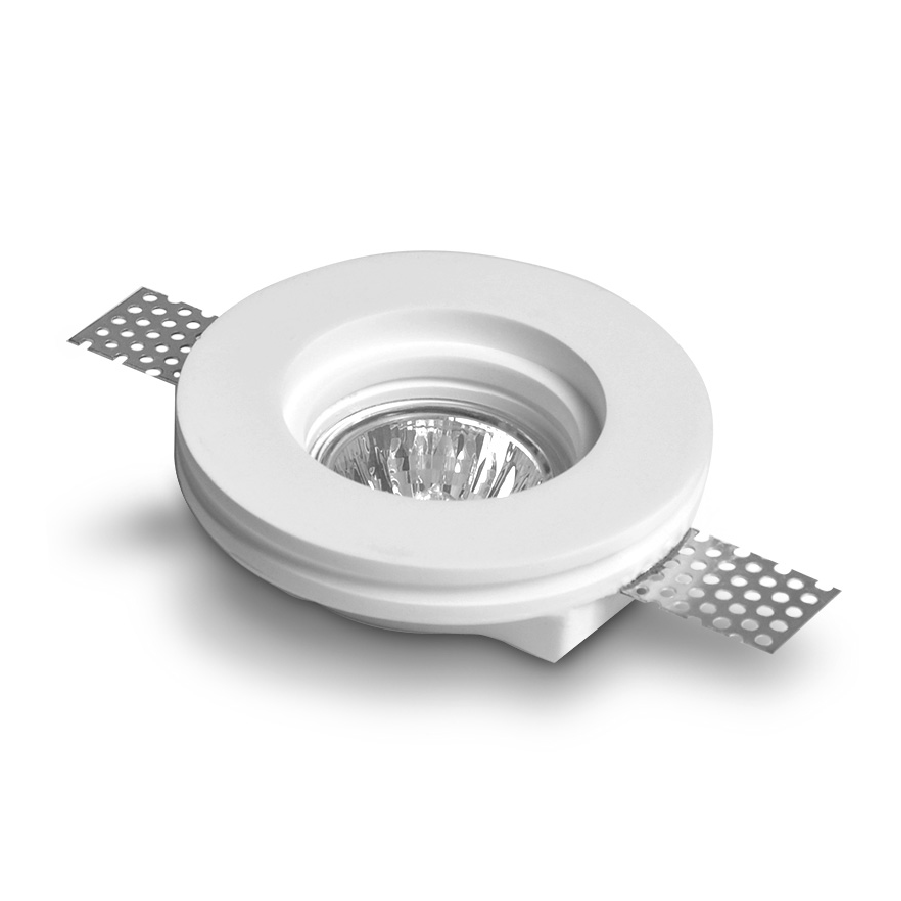

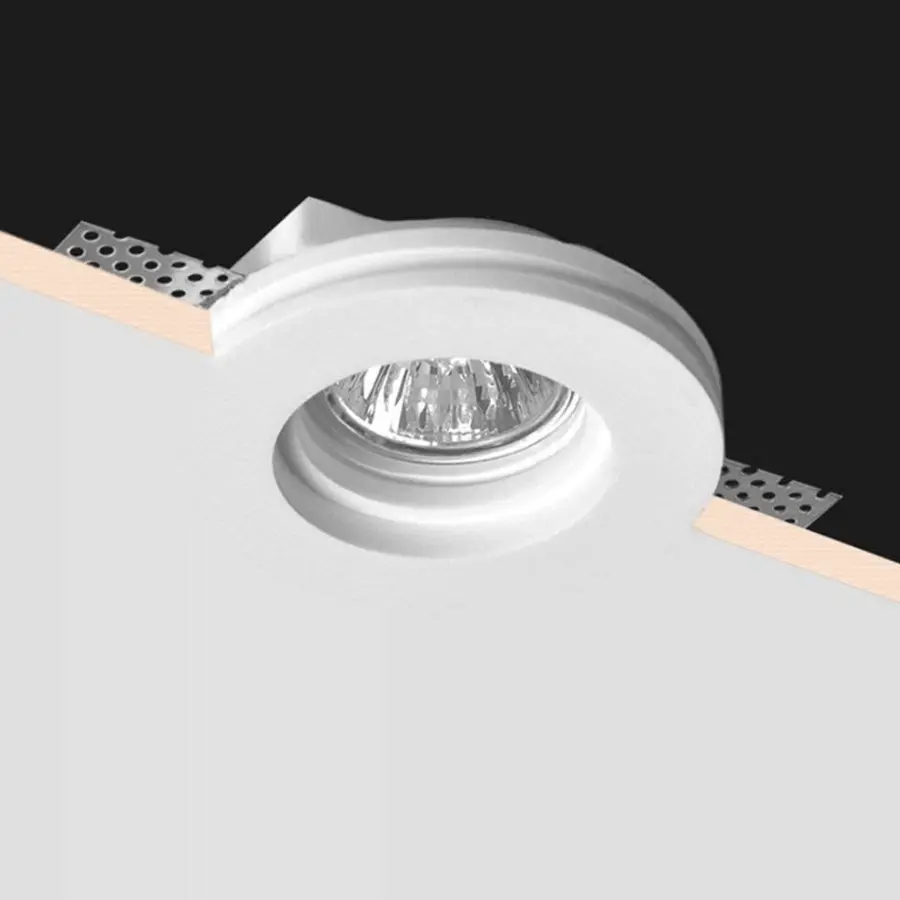

Trimless Recessed Downlight – Round Gypsum Body (Flat Edge Design)
The Trimless Round Gypsum Downlight (Flat Edge Design) is a recessed luminaire housing made for seamless ceiling integration. It features a circular plaster body with clean edges and a deep lamp cavity, allowing for glare-free, focused illumination.
Made from high-quality gypsum (plaster), this fixture is paintable and blends perfectly with surrounding surfaces after installation. Its perforated metal wings ensure solid adhesion and easy plastering for a fully flush, frameless finish.
Ideal for modern interiors, it suits applications such as living rooms, corridors, boutiques, hotels, and office environments, providing a refined, minimalist lighting effect.
| Parameter | Specification |
|---|---|
| Product Name | Trimless Recessed Downlight – Round Gypsum Body (Flat Edge Design) |
| Type | Recessed ceiling luminaire housing |
| Mounting | Flush / Trimless (integrated into plasterboard ceiling) |
| Application | Indoor lighting – residential, hospitality, retail, offices |
| Body Material | High-grade plaster (gypsum) |
| Mounting Frame | Perforated galvanized steel wings |
| Shape | Round with flat edge trimless profile |
| Finish | Paintable matte white surface |
| Dimensions | Ø100 × 70 mm (typical model) |
| Weight | Approx. 0.6–1.0 kg |
| Installation Surface | Drywall or plasterboard ceiling |
| Lamp Type | GU10 / MR16 LED or halogen |
| Lamp Position | Deep recessed (anti-glare) |
| Recommended Light Source | LED 5–7 W (2700–4000 K) |
| Beam Angle | Adjustable depending on lamp |
| Light Emission | Directional spot / downlight |
| Input Voltage | 220–240 V AC (GU10) / 12 V DC (MR16) |
| Power Consumption | According to lamp type |
| Driver | External (for LED module) |
| IP Rating | IP20 (indoor use only) |
| Operating Temperature | -10 °C to +40 °C |
| Fire Resistance | Non-flammable gypsum body |
| Maintenance | Paintable, dust-wipe clean |
| Certifications | CE / RoHS compliant |
| Features | Seamless integration, paintable surface, glare reduction, modern design |
| Usage | Indoor only (dry locations) |
`
