Description

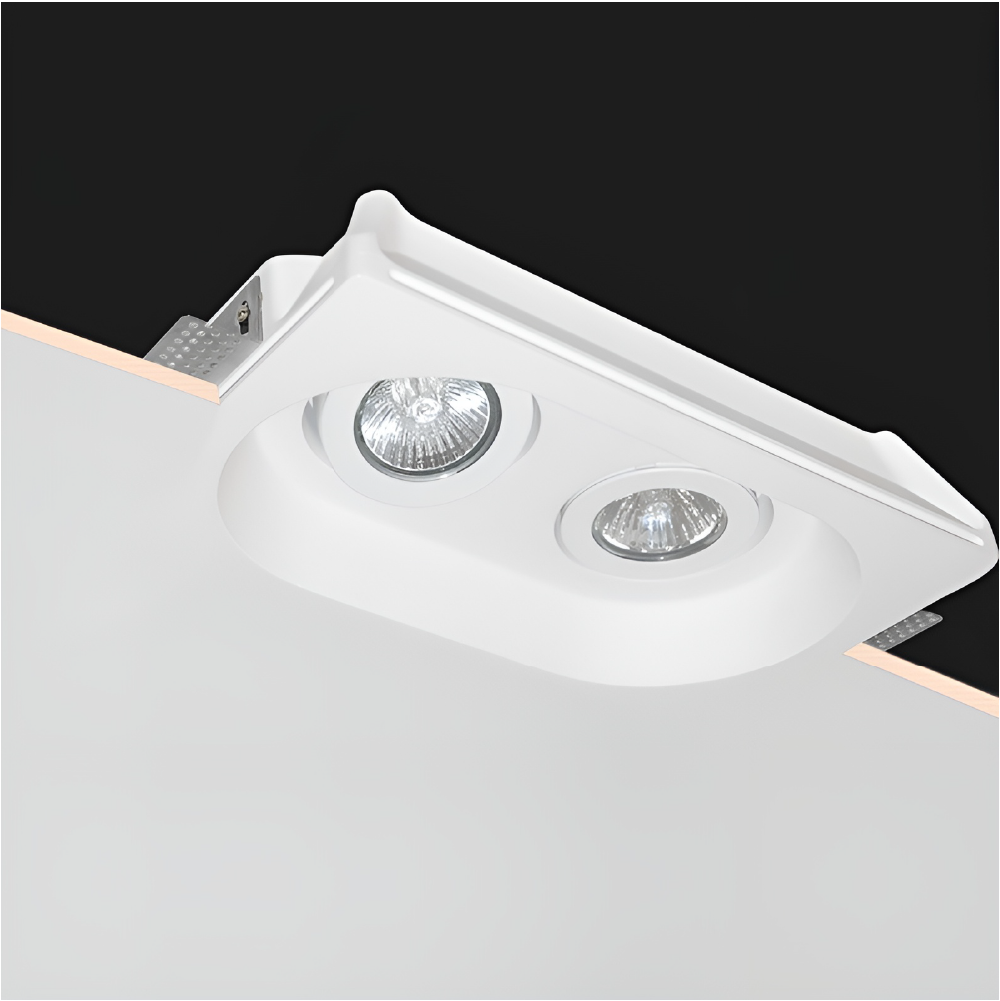

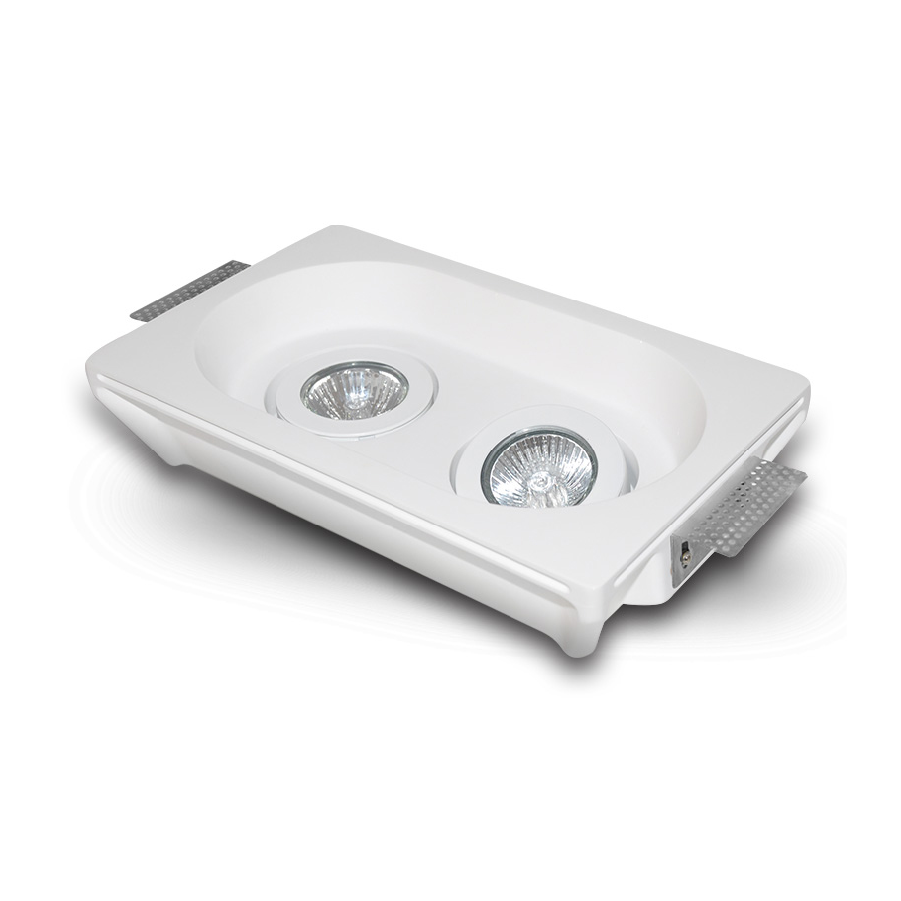

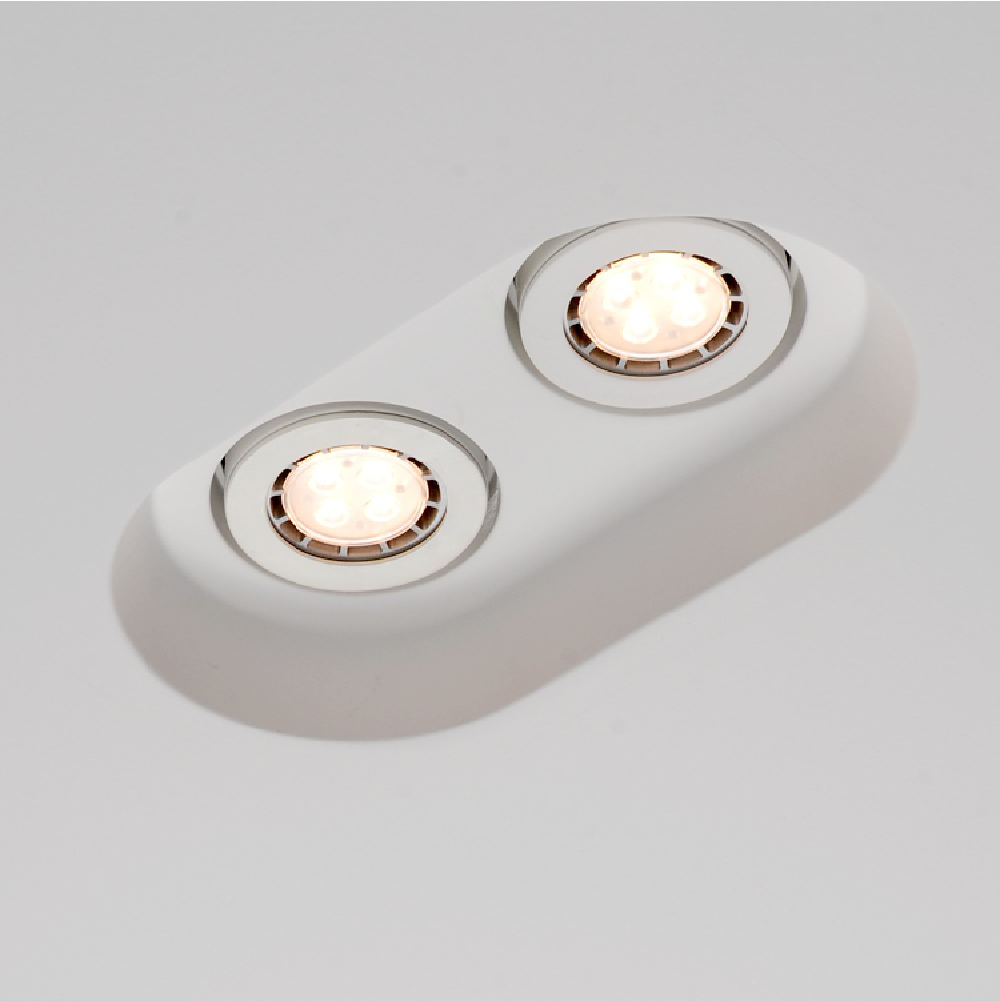

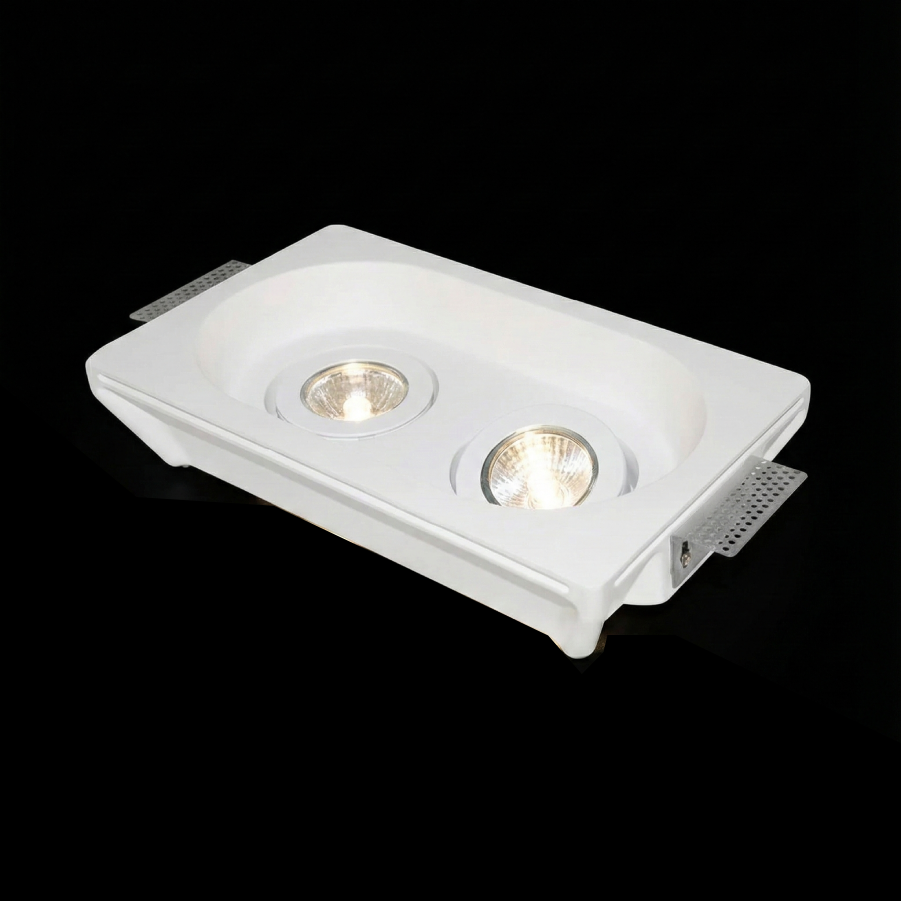

Trimless Recessed Downlight – Double Oval Gypsum Body
The Trimless Double Oval Gypsum Downlight is an architectural recessed luminaire designed for seamless ceiling integration. Its oval dual-lamp configuration provides two focused beams within a smooth, frameless housing, offering elegant and balanced illumination.
Made from high-quality plaster (gypsum), this fixture can be painted to perfectly match ceiling finishes for a minimal, continuous look. The perforated steel wings ensure a secure installation into plasterboard or drywall surfaces, creating a smooth and invisible junction.
Perfect for residential, retail, and hospitality interiors, this model delivers both aesthetic refinement and functional lighting versatility.
| Parameter | Specification |
|---|---|
| Product Name | Trimless Recessed Downlight – Double Oval Gypsum Body |
| Type | Recessed ceiling luminaire housing |
| Mounting | Flush / Trimless (integrated into plasterboard ceiling) |
| Application | Indoor architectural lighting – residential, hotels, offices, galleries, and retail |
| Body Material | High-grade plaster (gypsum) |
| Mounting Frame | Perforated galvanized steel wings |
| Shape | Rectangular body with double oval recessed cavities |
| Finish | Paintable matte white |
| Dimensions | 255 × 155 × 55 mm |
| Thickness of Mounting Surface | 9–15 mm |
| Cutout Shape/Size | 258 × 158 mm |
| Lamp Type | MAX 2 × 35W |
| Lamp Position | Deep recessed (anti-glare) |
| Lamp Holder | GU10 / GU5.3 |
| Beam Angle | Adjustable depending on lamp |
| Light Emission | Dual directional spot / downlight |
| Input Voltage | 220–240 V AC (GU10) / 12 V DC (MR16) |
| Power Consumption | As per installed lamps |
| Driver | External (for LED module version) |
| IP Rating | IP20 (indoor use only) |
| Operating Temperature | -10 °C to +40 °C |
| Fire Resistance | Non-flammable gypsum |
| Maintenance | Paintable and easy to clean |
| Certifications | CE / RoHS compliant |
| Features | Dual-light design, trimless seamless finish, glare control, modern minimal look |
| Usage | Indoor only (dry environments) |
`
